Our Bikes

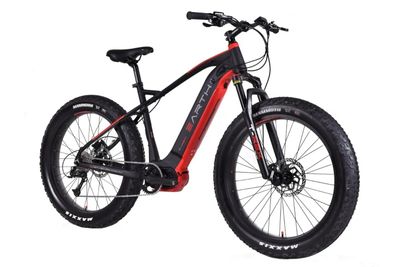

EARTH T-REX RINO Fat Tyre ebike

German design with the latest EARTH ATM 90 N.m mid-drive e-bike technology, the new TREX RINO SP 48V Crank Drive Fatbike is an ‘ all terrain go anywhere “ electric e-bike.


EARTH TREX RINO features include quality  bike components with a massive 48V 600WH Samsung lithium-ion battery power pack, one of the largest battery capacities of any branded e-bikes in Australia.


Our EARTH T-Rex RINO electric bikes come with a fully integrated down tube battery to protect the battery and wires from damage. Quality bicycle components like Selle royal saddle,  Lockout suspension fork, Shimano/Tektro Hydraulic Disc Brakes, Shimano Deore 9 speed gears make it one of the best value on-road and off-road electric FAT e-bikes in Australia.


Equipped with the Maxxis Mammoth 26x4.0* EXO protection tires, you can forget about the weather and hit the sand.


The modern striking off-road profile stands out due to the compact center ramp. It rolls quietly and with little vibration. Edged outer lugs give it an optimum off-road grip. Whether off-road or on-road, the RINO rolls over everything.

SPECIFICATIONS

BIKE COMPONENTS


Frame Material 6061 Alloy 26"x47MM

Fork 100cm Travel Hydraulic Suspension with Lockout

Gearing Shimano 9 Speed HG

Crankset 44T

Shifters Shimano Rapid Shift

Rear Derailleur Shimano Deore

Brakes Shimano Hydraulic Brakes, Tektro Hydraulic Brakes

Rim 26 Inch x 4 "Wide Rim

Tyres Maxxis Mammoth 26×4

Freewheel/Cassette Shimano HG 11-32T

Stem Alloy Fixed 80mm Stem

Grips Velo Grips

Saddle Selle Royal RIO plush Saddle

Seatpost Promax 350mm

Spokes Strong Stainless Steel

Pedals MTB Pedals

Weight Approx 26kg Including Battery


ELECTRICAL COMPONENTS


Chain KMC e9 EPT Rust Resistance

Motor EARTH ATM SP ( All Terrain Motor ) 100N.m Torque Mid Drive

Display Unit TFT Colour Multi-Function Display

Drive/Sensor Torque / Cadence Sensor

Battery Samsung 48V600Wh Li-Ion Battery Pack

Range Performance Depend on Level of Motor Assist. Range 70~100km Plus++

Maximum Speed 25kph with Power Assist ( EN15194)

Our Bikes

Reid Fat bike - sand bike

Ares 26" Fat Bike Midnight Blue



The Ares is again tough, reliable and built around geometry optimised to handle the sketchiest terrain. This performance Fat Bike will take you anywhere on deep desert sand and get you home again in style.

The  Ares Fat Bike runs even wider tyres than ever before with huge Kenda 26x4.5” fatties for amazing grip and the ability to traverse terrain that regular mountain bikes can’t even dream of attempting. If you want to explore new trails, rugged terrain and a riding experience like no other – the  Ares will take you there.

The Ares features performance Fat Mountain Bike geometry and is built around a stiff, lightweight hydroformed 6061 alloy frame. The new frame sees an upgraded integrated headset for improved handling, control and feel when the trail gets gnarly.

This Fat bike features high-performance Tektro HD-M285 Hydraulic Disc Brakes which provide remarkable stopping power and control even when covered in sand.

The Shimano 1x10-Speed gearing provides optimal obstacle clearance while giving you enough range for pinch climbs or long sections of broken ground.

How tough is it..?  The Ares recently completed the Simpson Desert Bike Challenge - 500km over 5 days in one of the harshest environments in the world.

SPECIFICATIONS

BIKE    COMPONENTS



Frame: Hydroformed 6061 alloy

Forks Alloy

Wheelset / Rim M9

Brakes Tektro m285 hydraulic disc

Tyres Kenda k1151 26 x 4.5\

Hubs M10

Freewheel / Cassette Shimano cs-m4100-10 (11-42t)

Rear Derailleur Shimano deore rd-m4120 shadow plus

Handlebars Alloy

Stem 1 1/8\

Shifters Shimano sl-m600-10r

Bottom Bracket Prowheel pw-bb120

Brake Lever Tektro m285 brake levers

Pedals 9/16\ alloy platform

Chain Kmc x10

Grips Black mtb 130mm

Saddle Black mtb

Seatpost Alloy 31.6mm micro adjust 300mm
